AlertMaxx2

The AlertMaxx2 is an intelligent high level alarm, designed to alert homeowners when the water level in their pump station becomes too high.

Enquire NowClick
alert maxx2 - Big
  • The AlertMaxx2 provides internal data logging, energy monitoring and a reminder when servicing is due.
  • It can be a stand alone unit or it can be connected via Wi-Fi to the SideWinder Technology monitoring system.
  • Offering a volt free contact, the AlertMaxx2 allows connection of external devices such as an alarm or beacon with a maximum load of 0.5A and voltage up to 30V.
  • The VFR can also be connected to any BMS system if required for high level alarm only, sending a continuous signal.

The AlertMaxx2 can be used in conjunction with the PowerMaxx2 range. When connected, the AlertMaxx2 receives important data about the status of the battery backup. The battery backup will also extend the operating time of the AlertMaxx2 during a power outage. All this data is transmitted via Wi-Fi (if connected) to the SideWinder operations centre where it is available 24/7 for intelligent analysis.

Product Code AMX2G or AMX2F
Size (without cable glands) 310mm x 170mm x 78mm
Weight (with battery installed) 1kg
Mains supply 200-250V AC (50Hz)
Internal battery Pb 6V – 1.2Ah
Sound Level 100db @ 30cm
Operating temperature       5-35ËšC
Power (standby) <2W
IP IP2X
Approximate installation time 1 hour
Electrical Requirements (Ground) 2 Spurs
Electrical Requirements (Foul) 1 Spur
Warranty 2 years
  • 6V battery backup.
  • Internal logging.
  • 100db sounder.
  • Local energy monitoring.
  • Wi-Fi enabled.
  • Predictive capabilities.
  • 24 month component guarantee
  • Digital display to show status and comprehensive fault codes.

When the AlertMaxx2 is connected to the SideWinder monitoring system, notifications can be sent to make up to alert 5 contacts of the following events:

  • High level alarm
  • High water occurred
  • Mains power failure
  • Mains power returned
  • High level alarm muted
  • Service reminder
  • Missed data heartbeat

In addition, each month a health report will be shared via email detailing the average pump time (in seconds) over the last month and the total cycles per month. It will also include battery back up data if there is a unit installed.

Additional AlertMaxx2 key information can be viewed in the PDF below:

Get in touch today to find out more:

Many of our customers are also interested in these related products:

  • Dual-V4V6-oct22

    Dual V4 Pump Station

    The Dual V4 is a packaged pump station designed to collect ground water via a perimeter channel or modular drainage system.

  • powerMaxx2 - Trans

    PowerMaxx2

    The PowerMaxx2 is a battery back up unit specifically designed for pumps to ensure they can still operate should there be a power outage.

  • Dual v3

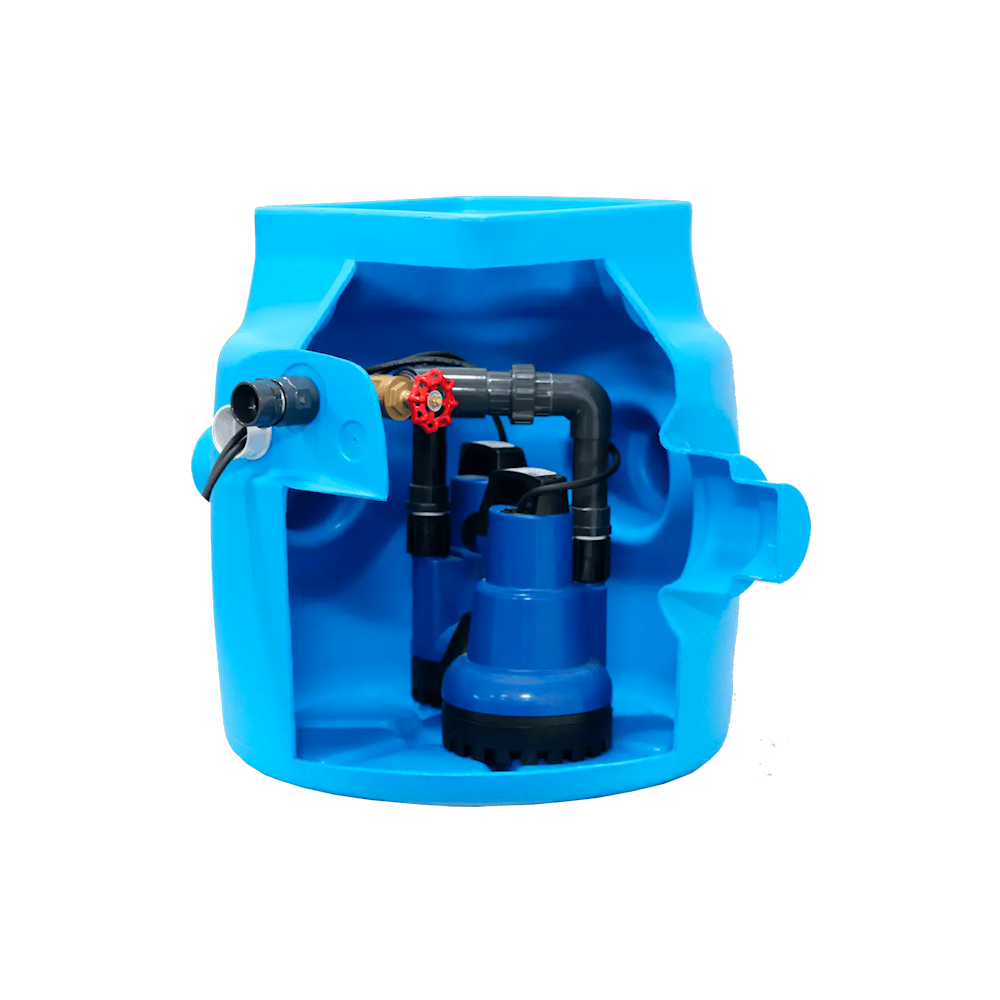

    Dual V3 Pump Station
